Access Router

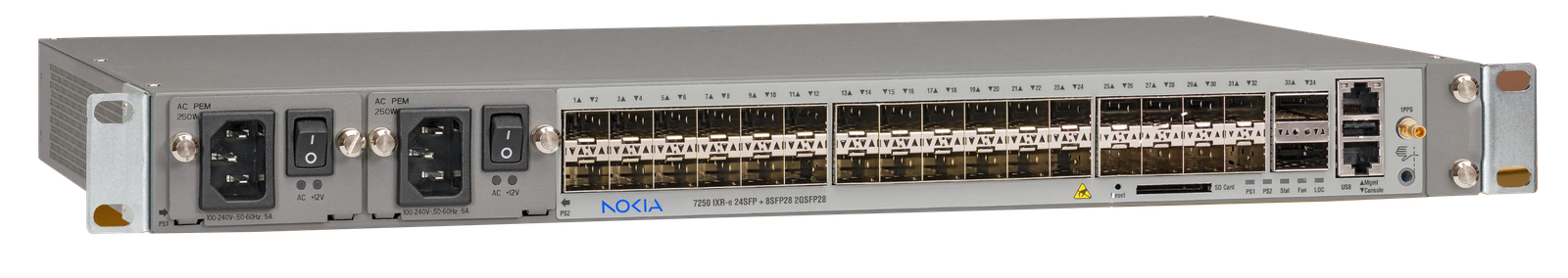

7250 IXR-E BIG
24 × SFP+/SFP Ports (10/1GE)
8 × SFP28/SFP+/SFP Ports (25/10/1GE)
2 × QSFP28/QSFP+ Ports (100/40GE)
High-performance IP/MPLS router for 5G & Any-G aggregation
Full Segment Routing (SR-MPLS & SRv6) support
EVPN, VPLS, VPWS, VPRN, VXLAN termination
Aggregation Router

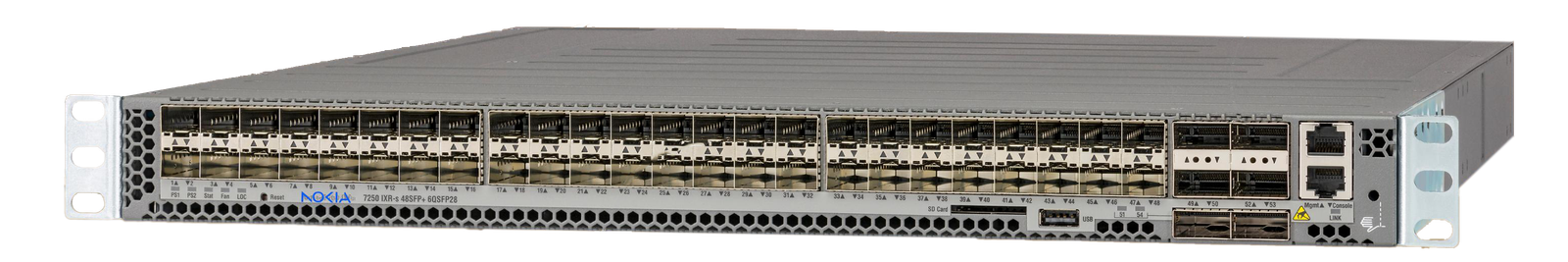

7250 IXR-S
48 × SFP+/SFP Ports (10/1GE)
6 × QSFP28/QSFP+ Ports (100/40GE)
800 Gb/s full-duplex throughput with 1+1 AC/DC power redundancy
IP/MPLS with EVPN-VPLS, EVPN-VPWS and VPRN support
Model-driven SR OS with console, mgmt Ethernet, USB & SD-slot ports
Access Router

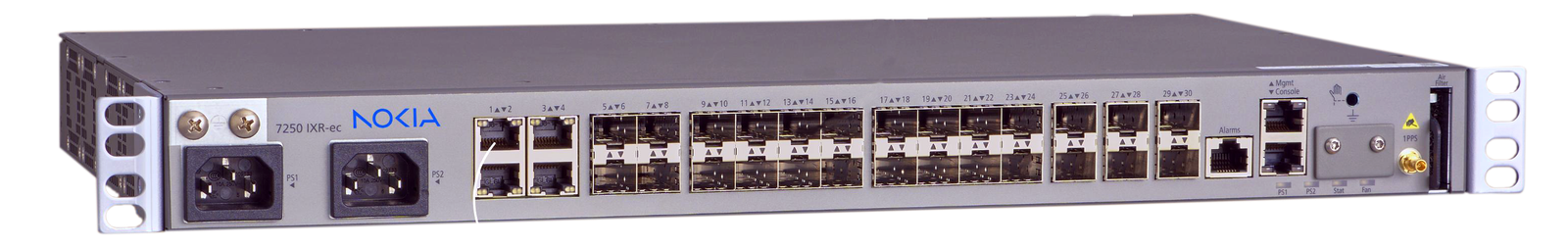

7250 IXR-EC
20 × SFP Ports (1GE)
6 × SFP+/SFP Ports (10/1GE)
4 × RJ45 GE Ports
Compact, high-density router
Robust IP/MPLS for all connectivity services
Supports 1GE and 10GE port flexibility
Access Router

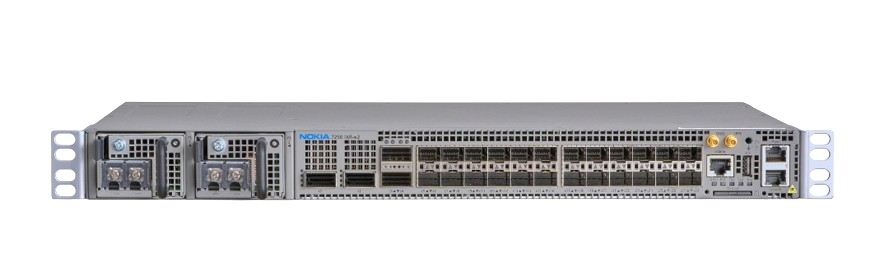

7250 IXR-E2
2 x 400G QSFP-DD Ports
2 x 100G QSFP28 Ports
24 x 25G/10G/1G SFP28/SFP+/SFP
Supports ultra-precise timing requirements with ITU-T G.8273.2 Class C and Class D clock noise specifications.
Features an integrated dual-band GNSS receiver (PRTC-B capable), SyncE, and IEEE 1588v2 (PTP).
Full support for SRv6, Segment Routing (SR-TE), IP/MPLS, EVPN, and model-driven SDN integration via Nokia NSP.
Access Router

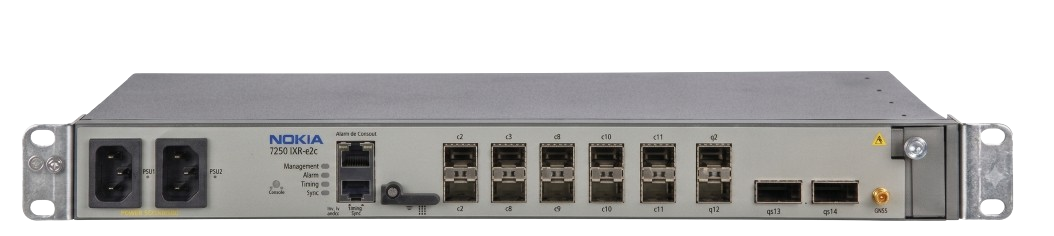

7250 IXR-E2C
12 x 25GE/10GE/1GE multi-rate ports (SFP28 / SFP+ / SFP)
2 x 100GE/400GE or 100GE/40GE high-speed ports (QSFP28 / QSFP+ / QSFP-DD)
24 x 25G/10G/1G SFP28/SFP+/SFP
Integrated GNSS/GPS receiver (SMA connector), SyncE, IEEE 1588v2 PTP (ITU-T G.8273.2 Class C/D compliant)
Powered by SR OS, featuring support for SRv6, Segment Routing, IP/MPLS, and EVPN
Dual redundant, hot-swappable AC or DC power supply units (PSU1 & PSU2)
✕
